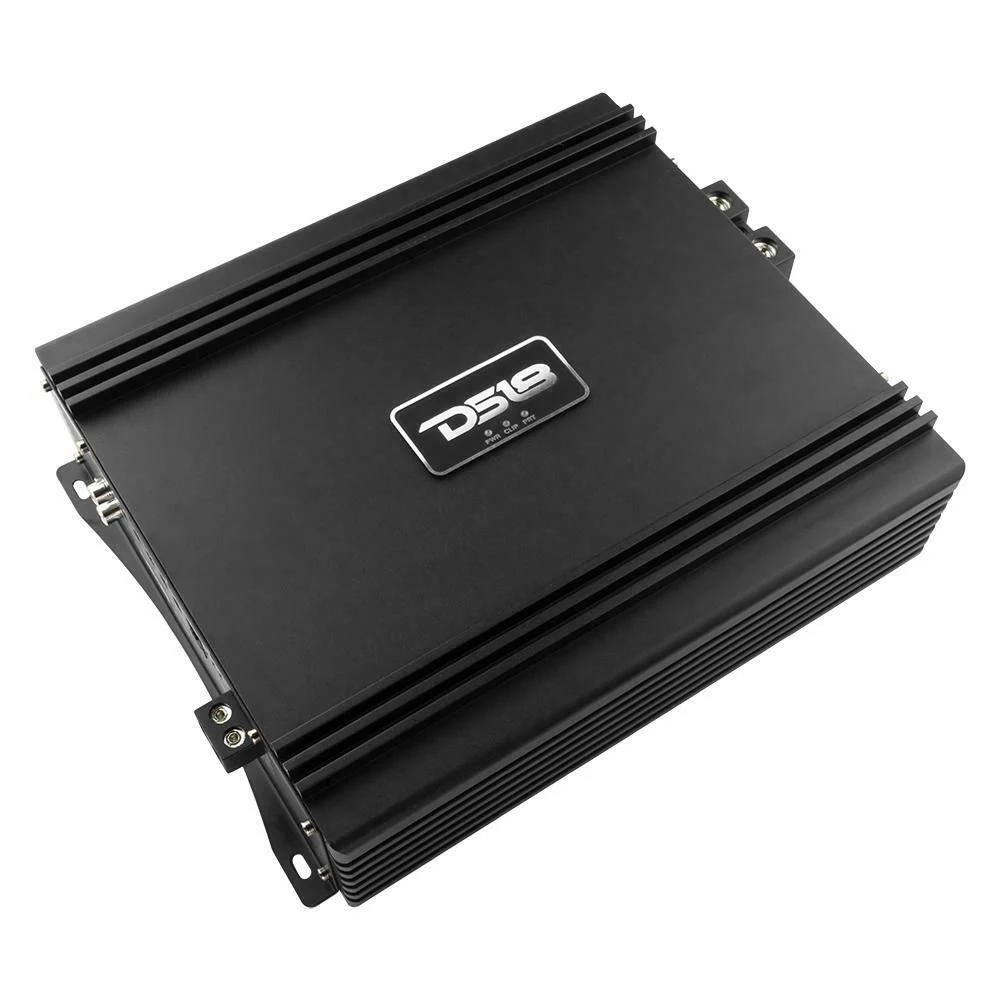

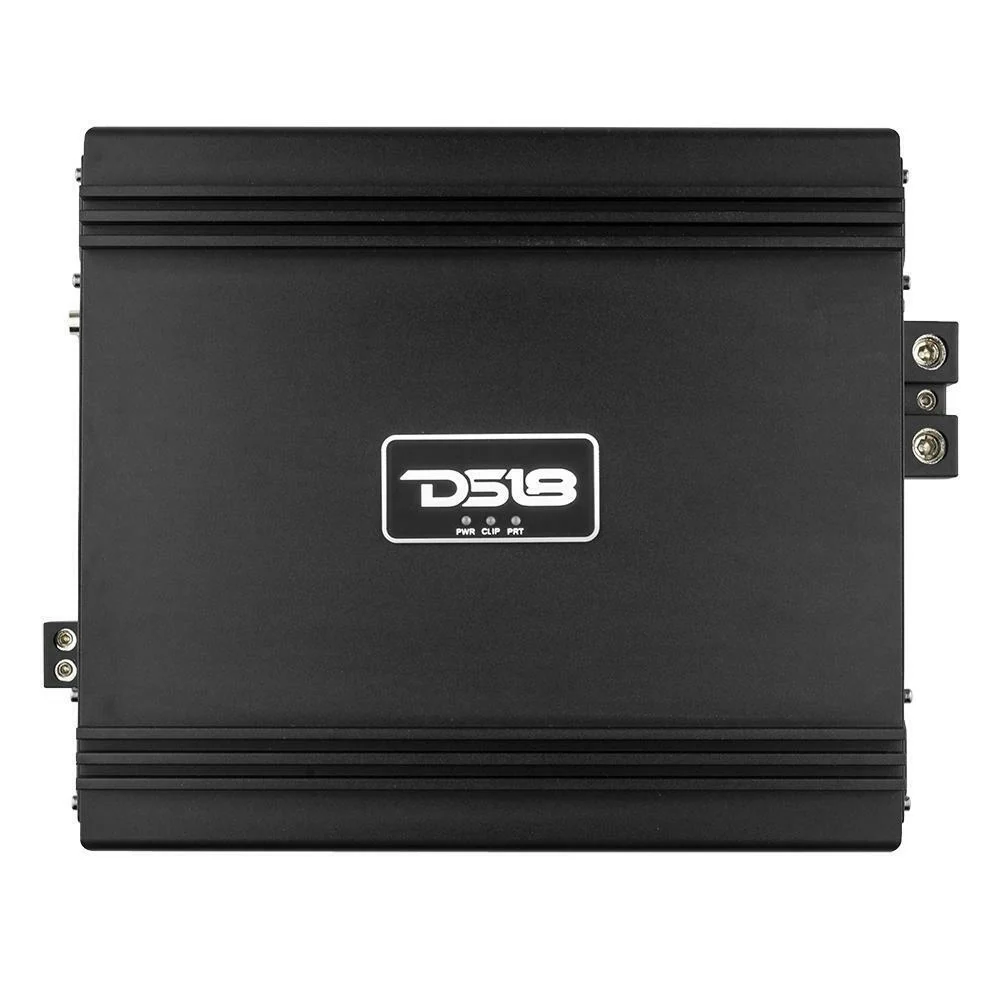

DS18 5000 Watts Monoblock Amplifier Full Range Class D with Bass Knob GFX-5k2

DS18 5000 Watts Monoblock Amplifier Full Range Class D with Bass Knob GFX-5k2

DS18 strives in getting our customers the latest and greatest technology with every product we produce. Now we have developed our latest series of full-bridge high wattage amps, the GFX series. These amps are guaranteed to give you an amazing punch for your money. These full-range amps are perfect for playing all types of speakers and subs. They have that high wattage rating to get maximum Xmax and decibels from your subs while with just a quick flip of a few switches, and the same amp can be rewired for amazing ear-shattering midrange speakers and highs. These amps come on multiple configurations and both have models so you can get maximum output from your sound system.

This Listing Includes:

(1) Amplifier

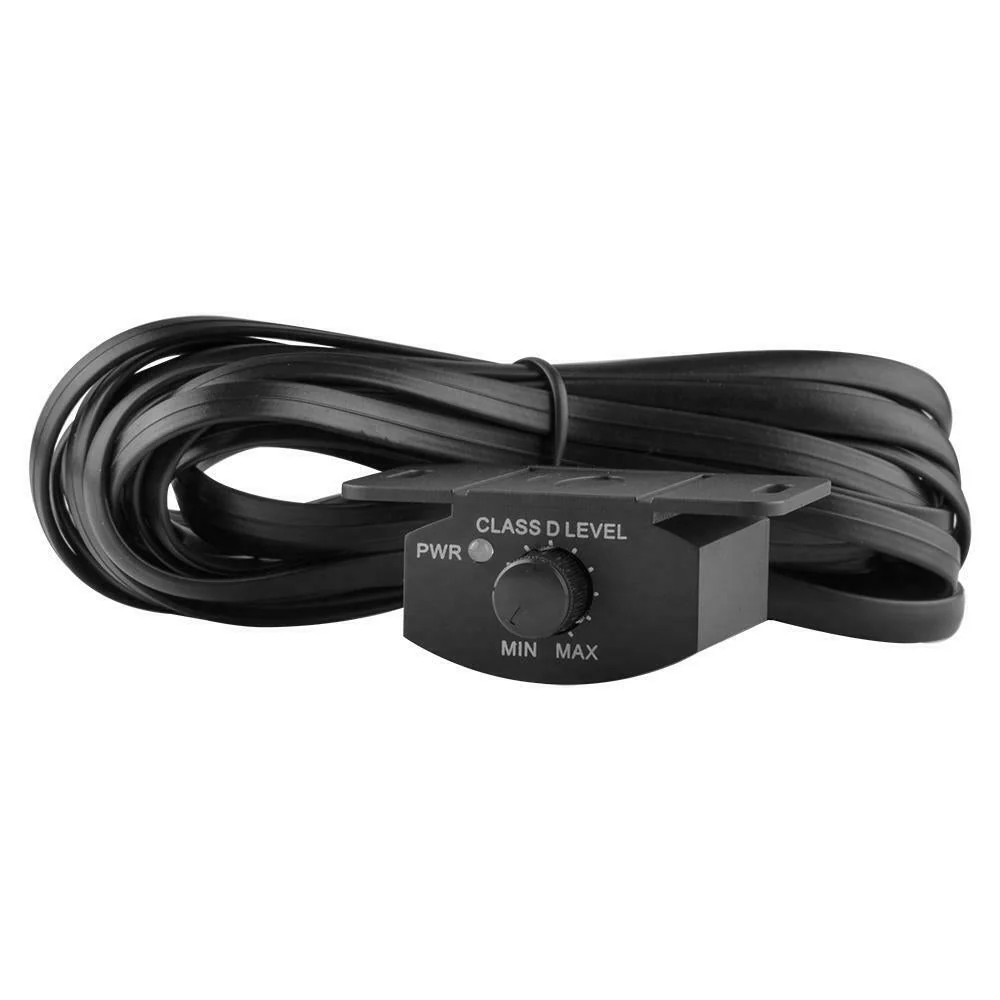

(1) Bass Knob

Features:

- Full range Capable Class - D Amp

- Compact Size and wide Band Crossover for more applications

- Variable Full Crossover Filter

- Surface Mount Component

- Audio Precision Quality Control Verification

- Stable & Reliable Four Layers PCB Trace Layout

- Heavy Duty Heat-sink Chassis and Forced Cooling System Build In

Specifications:

Model: GFX-5K2

Power @ 2 ohms (14.4V): 5000W

Power @ 4 ohms (14.4V): 3500W

Minimum Speaker Load: 2 OHM

THD: 1%

Input Sensitivity: 0.5-8V

Hi Pass Crossover (12dB/Oct): 15Hz-2KHZ

Lo Pass Crossover (12dB/Oct): 50Hz-20KHZ

Frequency Response: 15Hz-20KHZ

Bass Boost: 0-12dB

Bass Boost Frequency: 35Hz-70Hz

Working Voltage: 9-15V

Input Terminal Size: 1/0AWG

Output Terminal Size : 8 AWG

Dimensions (mm): 291 x 236 x 72
