DD Audio 9000 Watts RMS Monoblock Amplifier 1 Ohm Stable Bass Amp M9000

• HIGH POWER OUTPUT: Delivers 9000W RMS at 1 ohm for serious subwoofer systems and high-output builds
• UPGRADED HIGH CURRENT CIRCUIT: 7th gen M Series design with increased current capacity and improved transient response
• DUAL TRANSFORMER POWER SUPPLY: Twin toroidal transformers provide stronger, more stable power delivery
• ADVANCED COOLING SYSTEM: HVAC airflow design with internal fan and heavy-duty heatsink for thermal control
• ZVL LINK COMPATIBLE: Sync multiple amplifiers for large-scale, competition-level audio systems
• PRECISION TUNING CONTROLS: 24dB filters, subsonic and low-pass crossover adjustments, plus remote voltage display

DD Audio 9000 Watts RMS Monoblock Amplifier 1 Ohm Stable Bass Amp M9000

This Listing Includes

• (1) DD Audio M9000 Monoblock Amplifier

The DD Audio M9000 is a high-current monoblock amplifier built for serious bass systems that demand both power and control. Delivering up to 9000 watts RMS at 1 ohm, this amplifier is engineered to produce strong, consistent low-frequency output while maintaining stability under heavy load conditions. Designed around DD Audio’s 7th generation M Series circuit, the M9000 features upgraded internal components that improve durability, increase current flow, and enhance transient response. With a 30% increase in power supply capacity, dual toroidal transformers, and expanded MOSFET sections, this amplifier delivers cleaner, more controlled power with greater efficiency during demanding playback. To support its high output, the M9000 is equipped with DD Audio’s High Volume Air Circulation (HVAC) thermal management system, which combines a heavy-duty extruded aluminum heatsink with an internal fan to regulate temperature and maintain consistent performance during extended use. The amplifier also offers 24dB/octave crossover controls, adjustable subsonic and low-pass filters, and a remote control with voltage and clipping display, giving you precise control over your system tuning. With support for the DD Audio ZVL linking module, the M9000 can be integrated into larger multi-amplifier systems with ease. Built for enthusiasts who need reliable, high-output performance, the DD Audio M9000 delivers the power, control, and durability required for demanding car audio setups.

Features

• Optimized High-Current Power Supply


• 7th Generation M Series Amplifier Circuit


• ZVL Linking Module Input (Multi-Amp Ready)


• 24dB/Octave Bandpass Crossovers


• High Volume Air Circulation (HVAC) Cooling System


• Extruded Aluminum Heavy-Duty Heatsink


• Dual Toroidal Transformer Power Supply

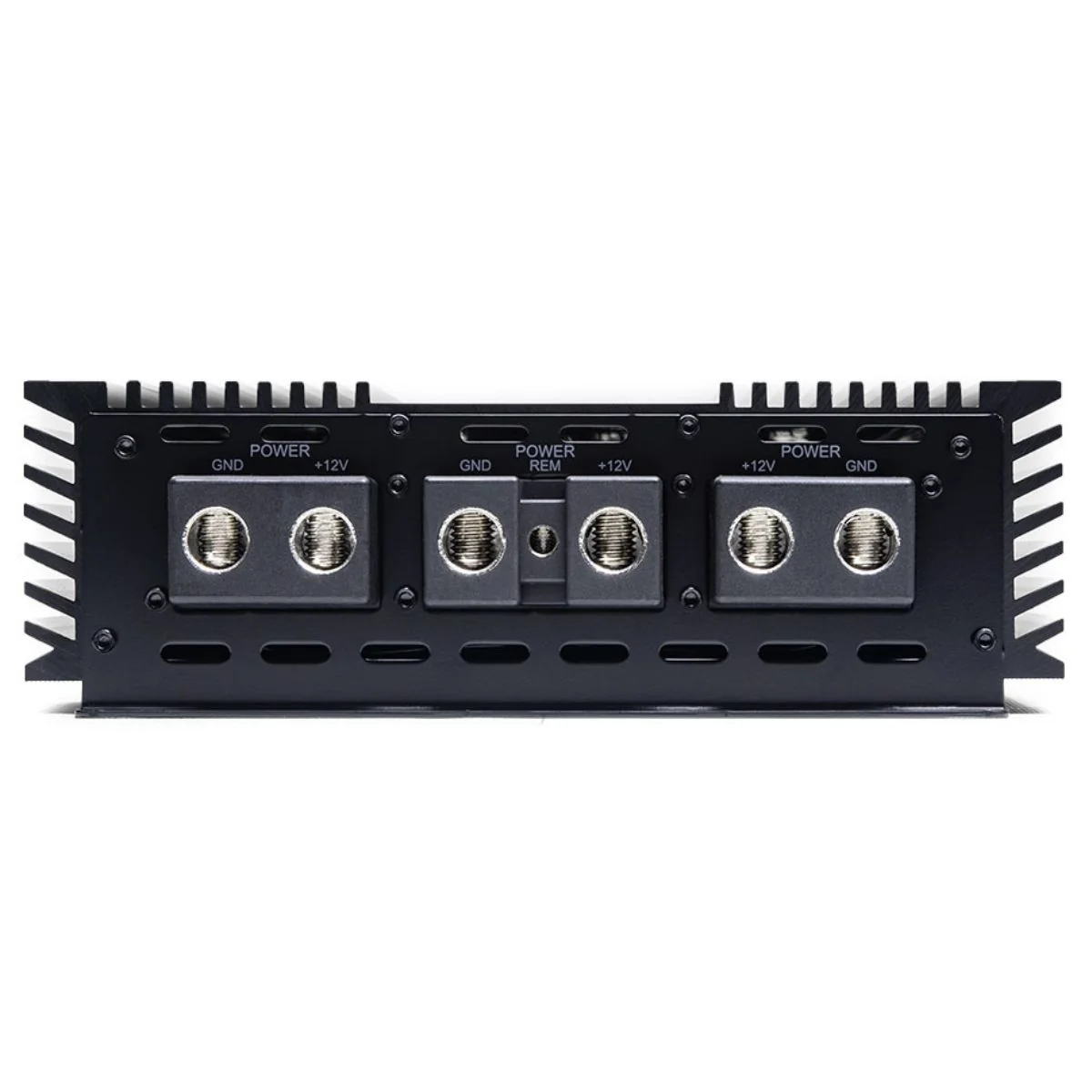

• Triple Power Input Terminals (3 x 0 Gauge)

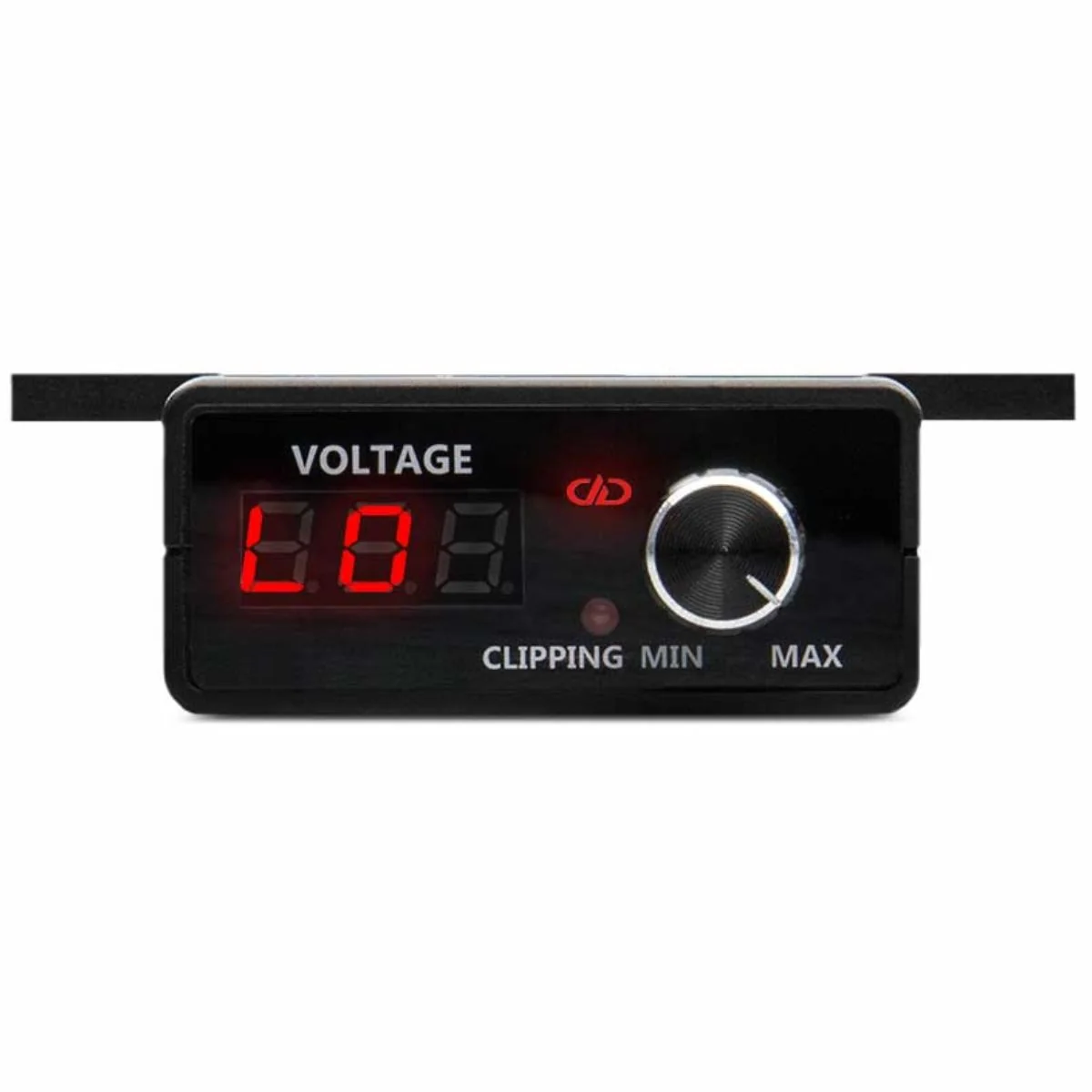

• Remote Control with LCD Voltage & Clipping Display


• Subsonic Filter (20Hz – 250Hz)


• Low Pass Filter (50Hz – 500Hz)


• Custom Vanity Plate Ready


• 5-Way Protection Circuit


• Made in Korea

Specifications:

• Channels: 1 (Monoblock)


• Operating Voltage: 9V – 16V


• Test Voltage: 14.4V


• Power Output:


• 4 Ohm: 3000W RMS


• 2 Ohm: 5500W RMS


• 1 Ohm: 9000W RMS


• Dynamic Power: 12,000W


• Frequency Response: 20Hz – 500Hz


• Signal-to-Noise Ratio: >105dB


• Damping Factor: >400


• THD: <1%


• Max Current Draw: 1500A


• Input Sensitivity: 0.2V – 8V


• Power Input: 3 x 0 Gauge


• Speaker Output: 10 Gauge

Dimensions:

Length: 25.75"

Width: 9"

Height: 2.85"
