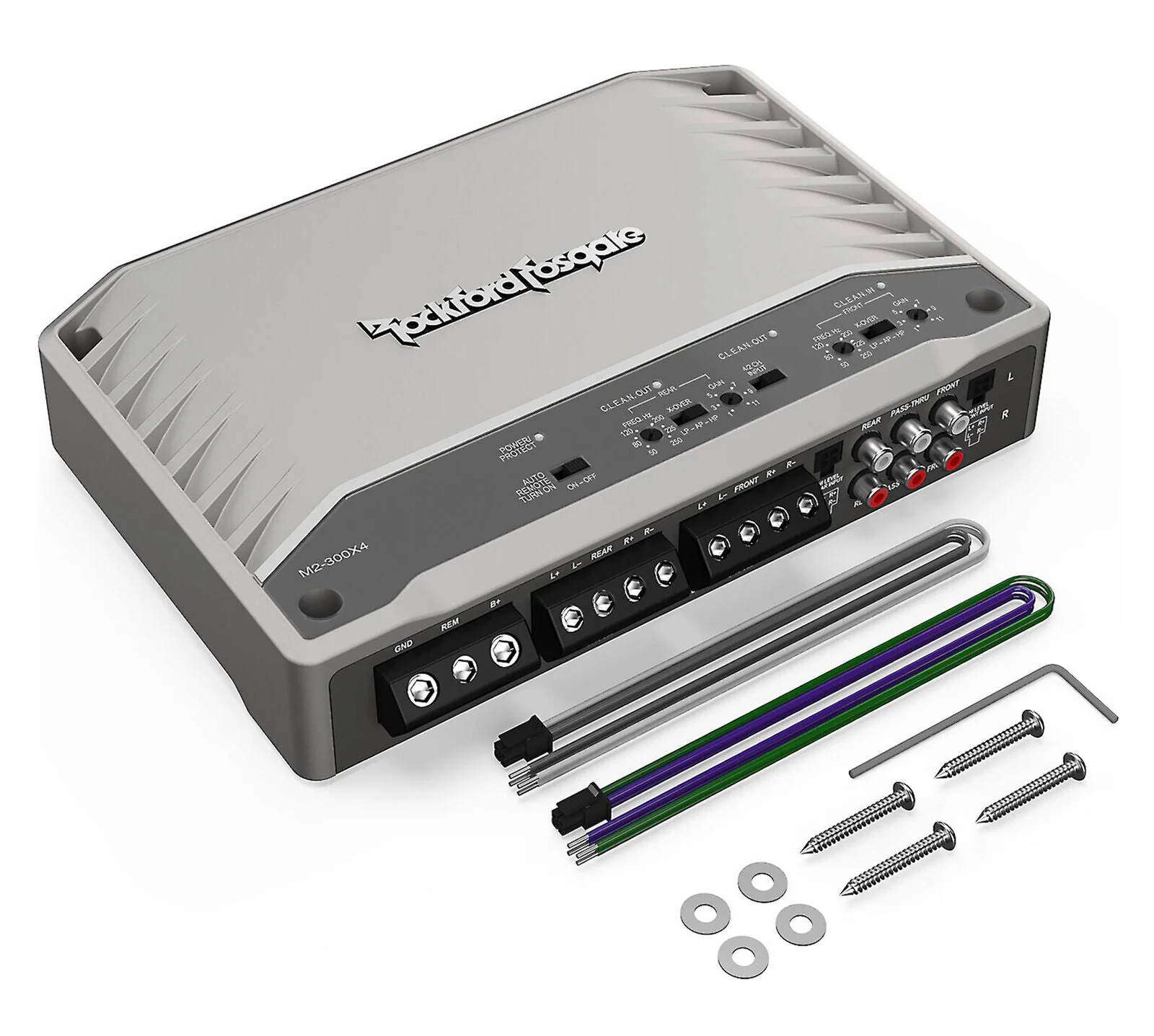

Rockford Fosgate 4 Channel 300 Watt Class D Element Ready Marine Amplifier

• 2/4 channel input switch
• Speaker Wire Gauge: 8 AWG, Power Wire Gauge: 4 AWG
• UV stable powder coated cast aluminum heatsink
• Low Impedance Stability

Rockford Fosgate 4 Channel 300 Watt Class D Element Ready Marine Amplifier



The M2 Series were developed for marine audio environments that feature UV resistant protection and special internal conformal coating that protect the electronics from water. It's designed for those who want a reliable amplifier - with all the power and performance you've come to expect from Rockford Fosgate - at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being "under rated," easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of M2 Series amplifiers are also designed to be easy to setup and configure, making them perfect for use in any application.



This Listing Includes:

(1) Amplifier



Features:

- Element Ready design protects against outdoor exposure

- Conformal coated circuit board protects against dust and water

- UV stable powder coated cast aluminum heatsink

- Zinc Nickel-plated Marine grade brass connection terminals

- C.L.E.A.N. input/output clip detection and indicator LEDs

- Optimized using AudioGraph PowerCube measurement tool

- Focused mass heatsink design

- Top Mounted Control Panel

- Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

- Short Circuit & Over Current Protection

- 2/4 channel input switch

- Integrated Power and Speaker Terminals

- Balanced Differential Inputs via Speaker Line or RCA Inputs

- RCA pass-thru outputs

- Integration with OEM and Aftermarket Radios

- "Auto-Sense" turn-on with remote out (high level in)

- Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)

- Low Impedance Stability

- Proprietary testing using RATS (Rockford Automated Testing System)

- CEA-2006 Compliant & CE Compliant



Specifications:

Number of Channels: 4

Total Power: 300 Watts

Bridgeable: Yes

Frequency Response: 20 Hz - 20 kHz

Circuit Topology Class: Class D

Signal Output: Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)

Power Wire Gauge: 4 AWG

Power Input Connector: Compression Terminal Block

Speaker Wire Gauge: 8 AWG

Speaker Output Connector: Compression Terminal Block

Cooling: Convection

Operating Voltage: 9 - 16 VDC

Recommended Fuse(not included): 60 A

Max. Current Draw (13.8V Sinewave): 39



A Rated Power (RMS Continuous Power):

50 Watts x 4 @ 4

75 Watts x 4 @ 2

150 Watts x 2 @ 4 Bridged/Mono



Dynamic Power (PVC/PowerCube):

70 Watts x 4 @ 4

115 Watts x 4 @ 2

230 Watts x 2 @ 4 Bridged/Mono



Input Sensitivity:

Low-Level: 150 mV - 4 V

High-Level: 450 mV - 12 V



Total Harmonic Distortion (THD+Noise):

4: Less Than 1.0%

2: Less Than 1.0%



Signal Input:

Front Low-Level: 2 RCA

Front High-Level: 4-Pin Molex

Rear Low-Level: 2 RCA

Rear High-Level: 4-Pin Molex

Input Switch: 2/4 Input

(works for RCA/High-Level inputs)



Crossover Controls:

Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth

Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth Rear

High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth

Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth

All-Pass: Yes



Visual Indicators:

Power/Protect

C.L.E.A.N. In

C.L.E.A.N. Out (front)

C.L.E.A.N. Out (rear)



Dimensions:

(H x W x D)

1.9" x 6.8" x 10.1"

(4.9 cm x 17.3 cm x 25.5 cm)
