Rockford Fosgate Prime 500W RMS x 1 at 2 Ohm Mono Subwoofer Amplifier R2-500X1

• Delivers 500W RMS at 2 ohms and 300W RMS at 4 ohms, perfect for driving subwoofers with clean, reliable bass output
• Integrated level setting feature helps optimize gain structure, ensuring distortion free performance and maximum output
• Equipped with both low level RCA and high level inputs with auto turn on, making it ideal for factory or aftermarket systems
• Includes variable low pass crossover, infrasonic filter, and onboard Punch EQ for precise bass shaping and system customization
• Built with a cast aluminum heat sink and top mounted controls, offering efficient cooling, easy installation, and long lasting reliability

Rockford Fosgate Prime 500W RMS x 1 at 2 Ohm Mono Subwoofer Amplifier R2-500X1

This listing includes:

• (1) R2-500X1 500W Mono Subwoofer Amplifier

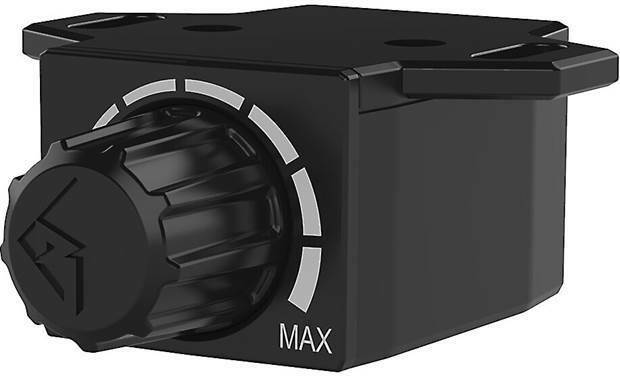

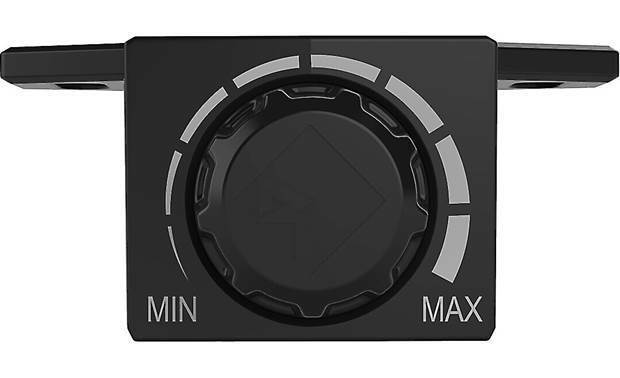

• (1) Wired Remote Level Control Module


• (1) 16" Remote cable (RJ-25 Connector on both ends)


• (1) 7" Speaker Input Harnesses


• (1) 3mm Allen Hex Key


• (4) 3/4" Screws


• (2) 1/2" Screws


• (5) Flat Washers


• (1) Nut


• (1) Installation Manual (English / French / Spanish / German / Italian)


• (1) Certificate of Performance


• (1) Rockford Fosgate Contact Card

The Prime Series were developed for car audio fanatics that want a reliable amplifier - with all the power and performance you've come to expect from Rockford Fosgate - at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being "under rated," easily surpassing all specifications, and most importantly, generating more power than their ratings. The latest generation of Prime Series amplifiers are also designed to be easy to setup and configure, making them perfect for use with factory audio or custom aftermarket systems.

Features:

• Balanced Differential Inputs with RCA Pass Through Outputs


• High Level Input Capable


• Defeat able Auto Turn On Circuit


• Features C.L.E.A.N. Set-up


• Variable Input Gain adjustment level


• R.L.C. Remote Level Control


• Variable Infrasonic Filter


• Continuously Variable On Board Punch EQ


• Top Mounted Control Panel


• Short Circuit & Over Current Protection


• CEA-2006 Compliant & CE Compliant


• Cast aluminum heat sink


• Full Range Class D


• Rollback Protection


• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

Specifications:

• Mono Subwoofer Amplifier


• Rated Power(RMS):


• 300W RMS x 1 @ 4 Ohm


• 500W RMS x 1 @ 2 Ohm


• Dynamic Power(PVC/PowerCube):


• 350W x 1 @ 4 Ohm


• 590W x 1 @ 2 Ohm


• Bridgeable: No


• Frequency Response: 20 Hz - 250 Hz


• Input Sensitivity:


• Low-Level: 150 mV - 4 V


• High -Level: 450 mV - 12 V


• Operating Voltage: 9-16 VDC


• Recommended Fuse: 80A (Not Included)

Dimensions:

• Length: 8.5"


• Width: 6.8"


• Height: 1.9"
