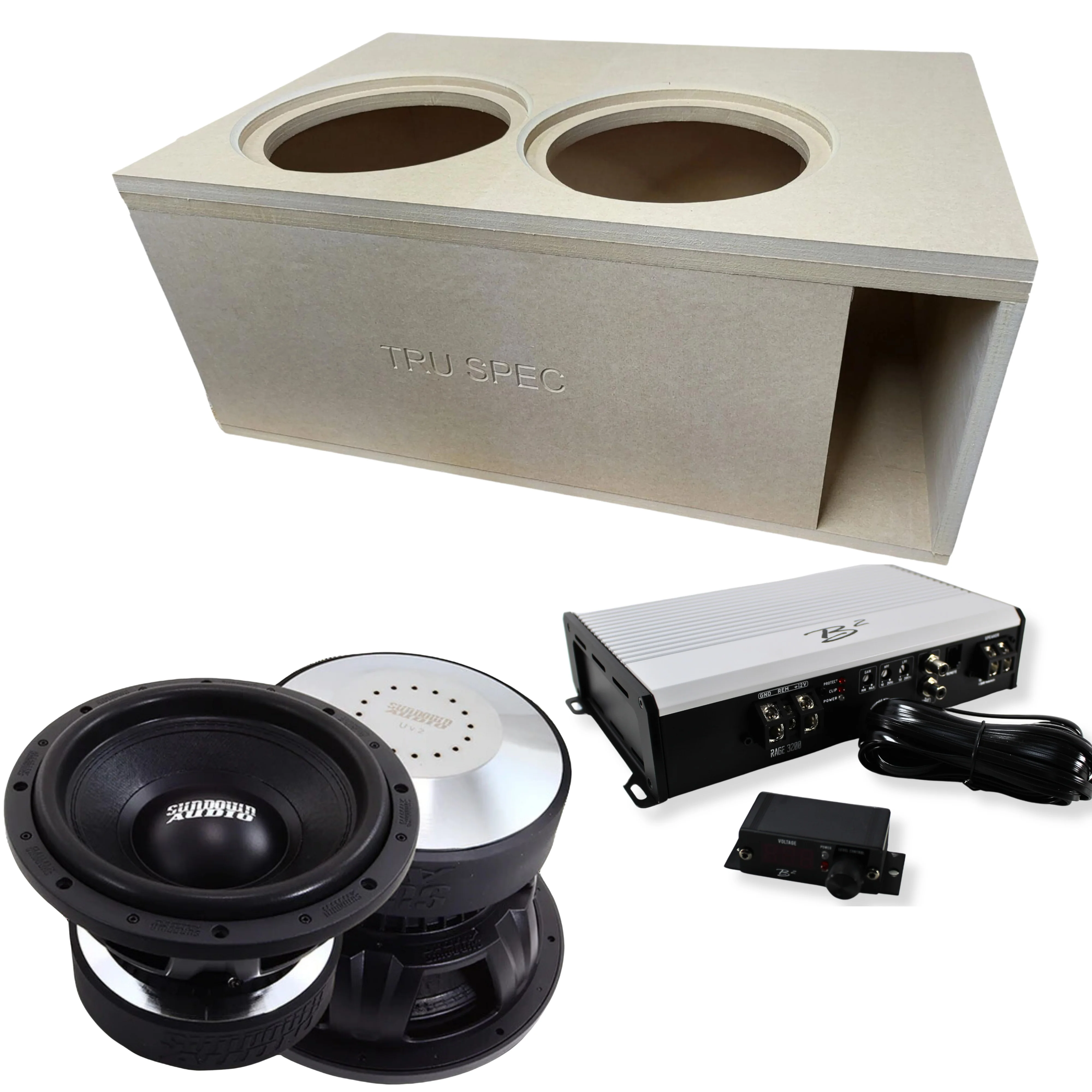

Sundown Pair of 12" U-Series D4 Subs & RAGE-3200 Amp w/ Dual Vented Enclosure

• Expertly paired subwoofers, enclosure, and amplifier for optimal performance and synergy.
• Due to the nature of the items in this package, each item will be shipped individually.
• GP/Tru-Spec Enclosures assembled in the USA.
• Includes a FREE 2-Year Extended Accidental & Repair Warranty card that covers all electronics in this package.

Sundown Pair of 12" U-Series D4 Subs & RAGE-3200 Amp w/ Dual Vented Enclosure

This Listing Includes:

• (2) U Series 12" dual 4 Subwoofers


• (1) Tru Spec Dual 12" vented Subwoofer Enclosure


• (1) B2 Audio RAGE 3200W Amplifier


• (1) CPS Extended Accidental & Repair Warranty Card

Subwoofer Features:

• Black Aluminum 3" voice coil former for superior heat dissipation


• High Temperature Round-Wire ALU voice coil with high-temp black adhesive


• Double stitched surround


• Heavy duty cast baskets - all new, custom-tooled


• Spring loaded terminals accept up to 8 gauge


• Stitched-on double-XL tinsel leads


• Solid pole with vent channels and aluminum shorting ring cap


• Rear drilled gap-venting


• Innovative high-velocity cast aluminum vented frame spacer ring


• Magnet ID shorting ring


• Top-Plate Cooling Channels


• Cast Aluminum surround bolt-on rings


• Optimized for small ported or bandpass enclosures

Subwoofer Specifications U12 D4:

• RE (Ohms): 6.0577


• FS (Hz): 41.9087


• VAS (L): 14.7535


• Qes: 0.5870


• Qms: 4.9022


• Qts: 0.5242


• Le (mH): 4.3694


• BL (NA): 31.1265


• Mms (Grams): 356.5462


• Cms (uM/N): 40.4498


• Sens (dB @ 1w/1m): 84.4191

Specifications:

• RMS Power @ 4 ohm: 1 x 1000 W (1100 W)


• RMS Power @ 2 ohm: 1 x 2000 W (2000 W)


• RMS Power @ 1 ohm: 1 x 3000 W (3200 W)


• Circuit Configuration: Hi-Ef Class D Full Bridge


• Frequency Response: 10 Hz - 24 KHz (+/- 3 DB)


• Signal to Noise Ratio: > 90 dB


• Input Sensitivity: 6 V - 0.2 V


• Crossover Circuit: 12 dB / OCT


• Low Pass Crossover: 50 Hz - 20 KHz


• High Pass Crossover: 10 Hz - 2 KHz


• Damping Factor: > 200


• Power Terminal Guage: 0 GA


• Fuse Rating: 250 A

Measurements:

• Length: 10.6" / 27 cm


• Width: 6.69" / 17 cm


• Height: 2.26" / 5.7 cm

Enclosure Specifications:

• Material Thickness: 0.75"


• Net Internal Volume: 3.50 ft3


• Tuning Frequency: 35 Hz


• Port Area: 52.00 inch2


• Cutout Diameter: 11.20"


• Flush Trim Diameter: 13.10"

Enclosure External Dimensions:

• Length: 34.00"


• Depth: 14.00"


• Height: 22.00"
