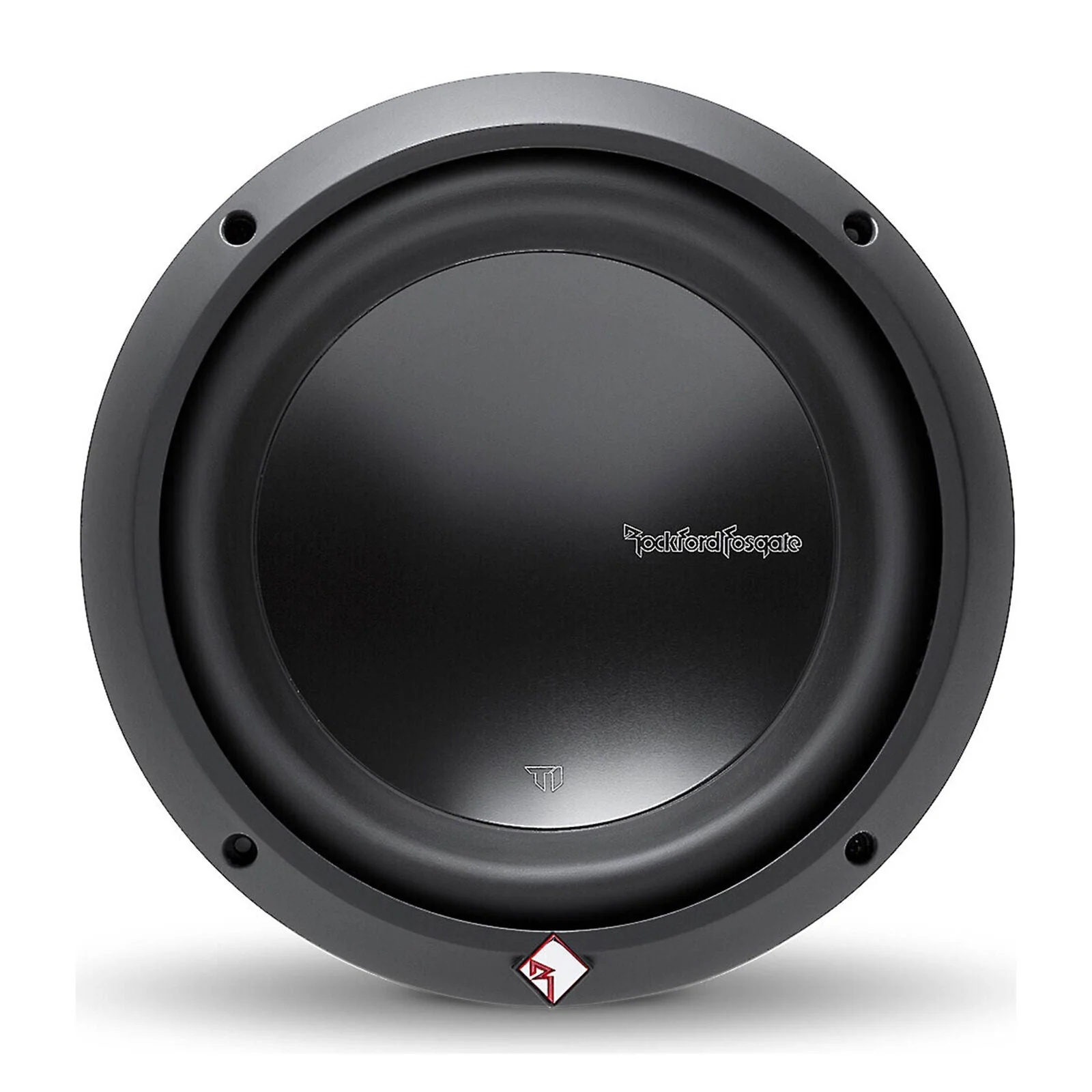

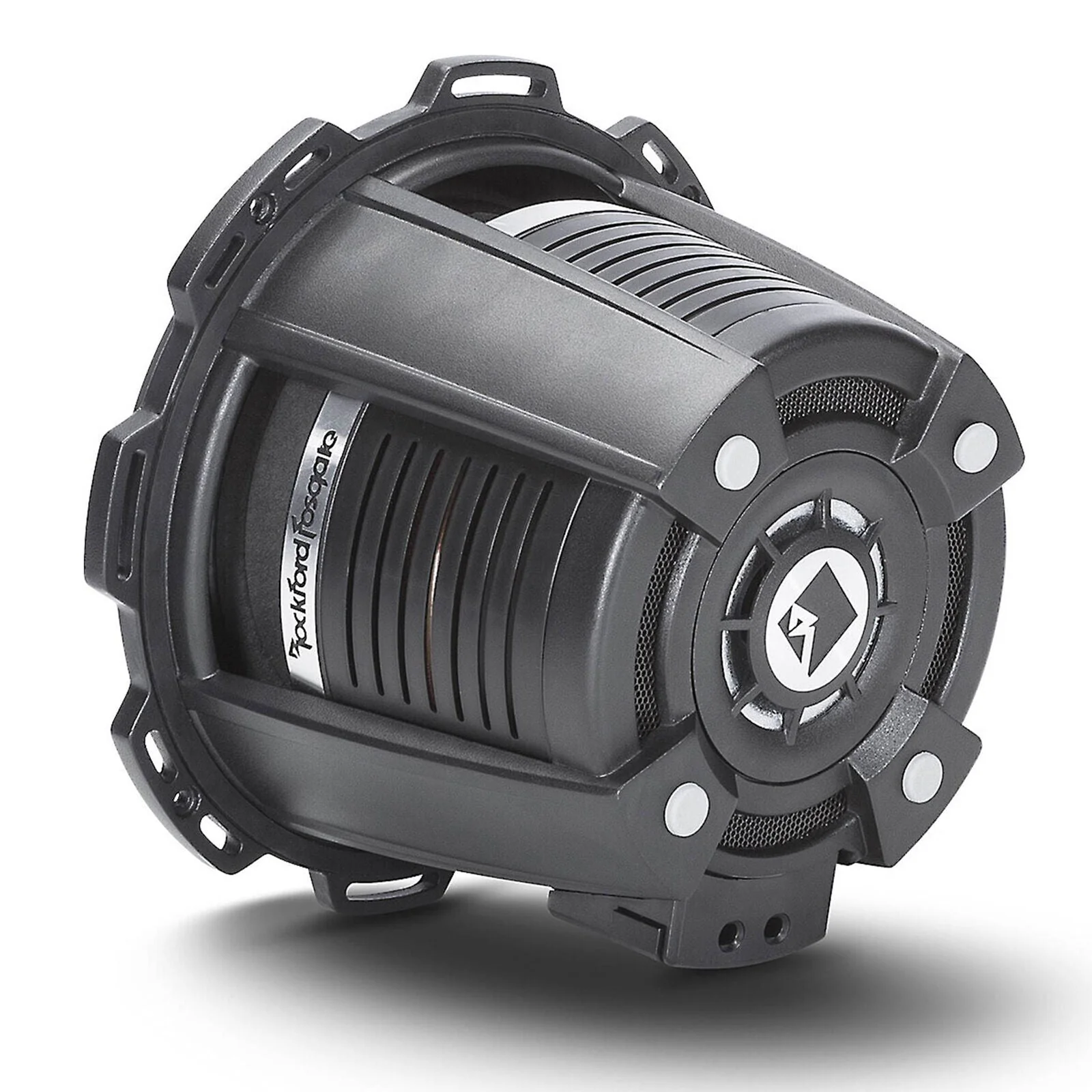

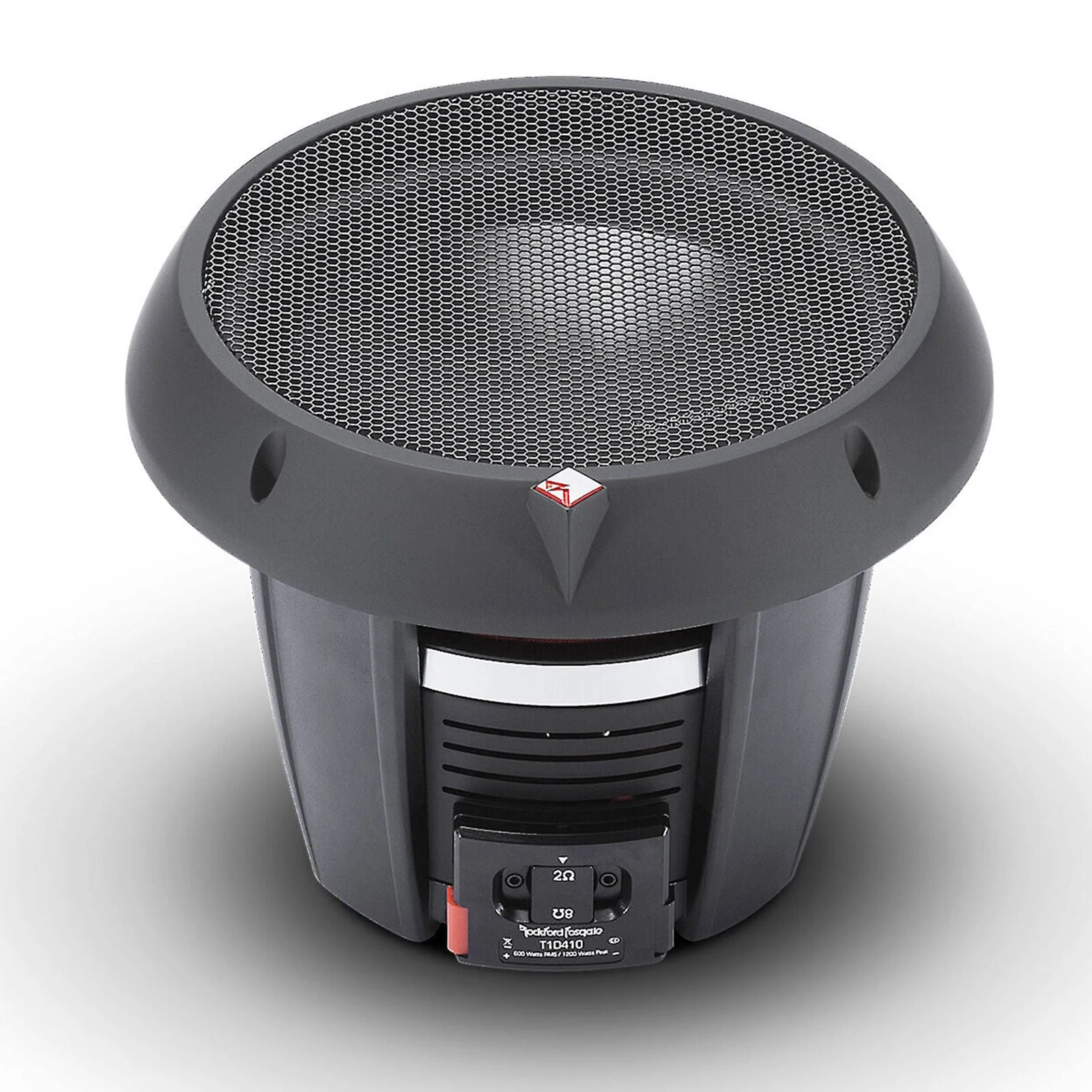

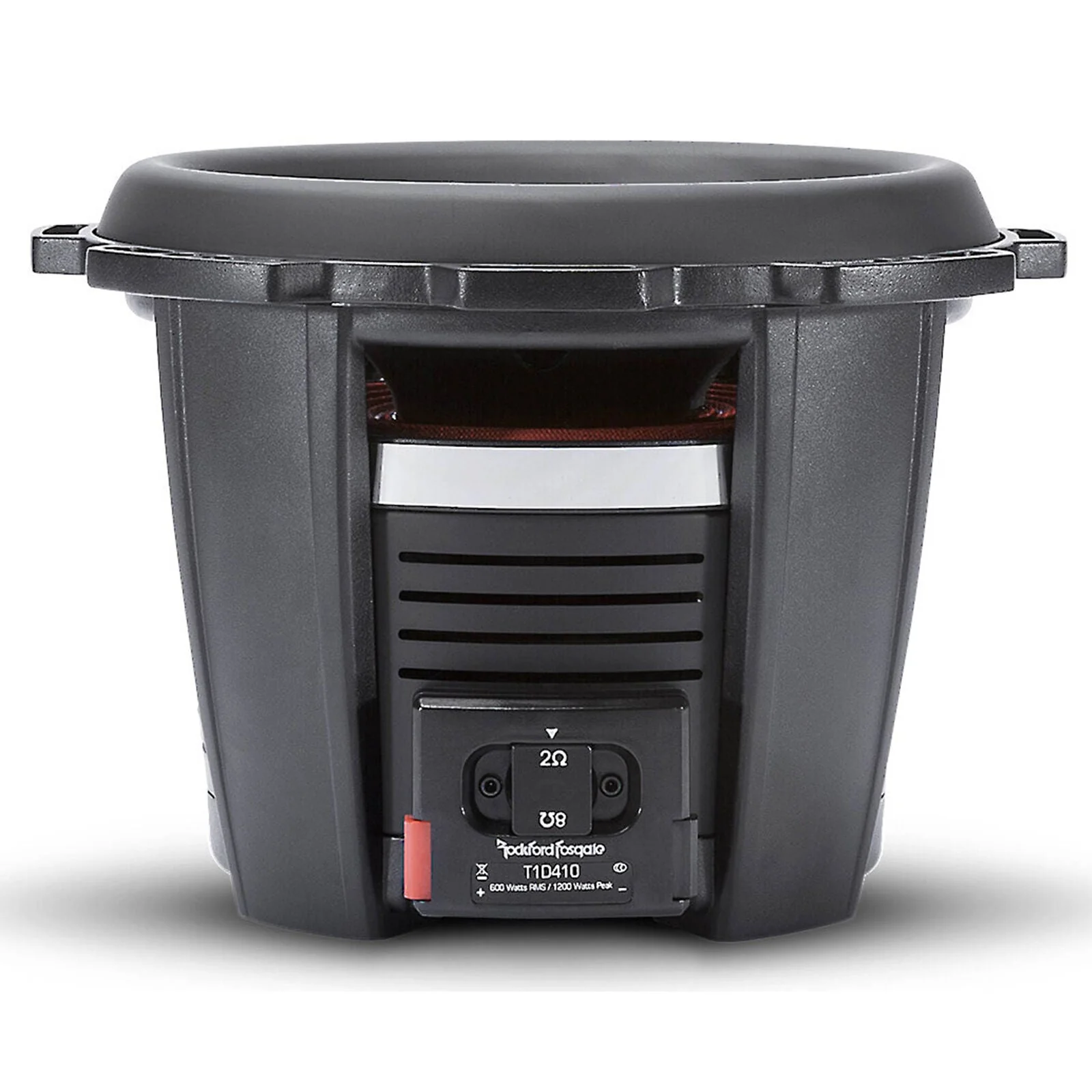

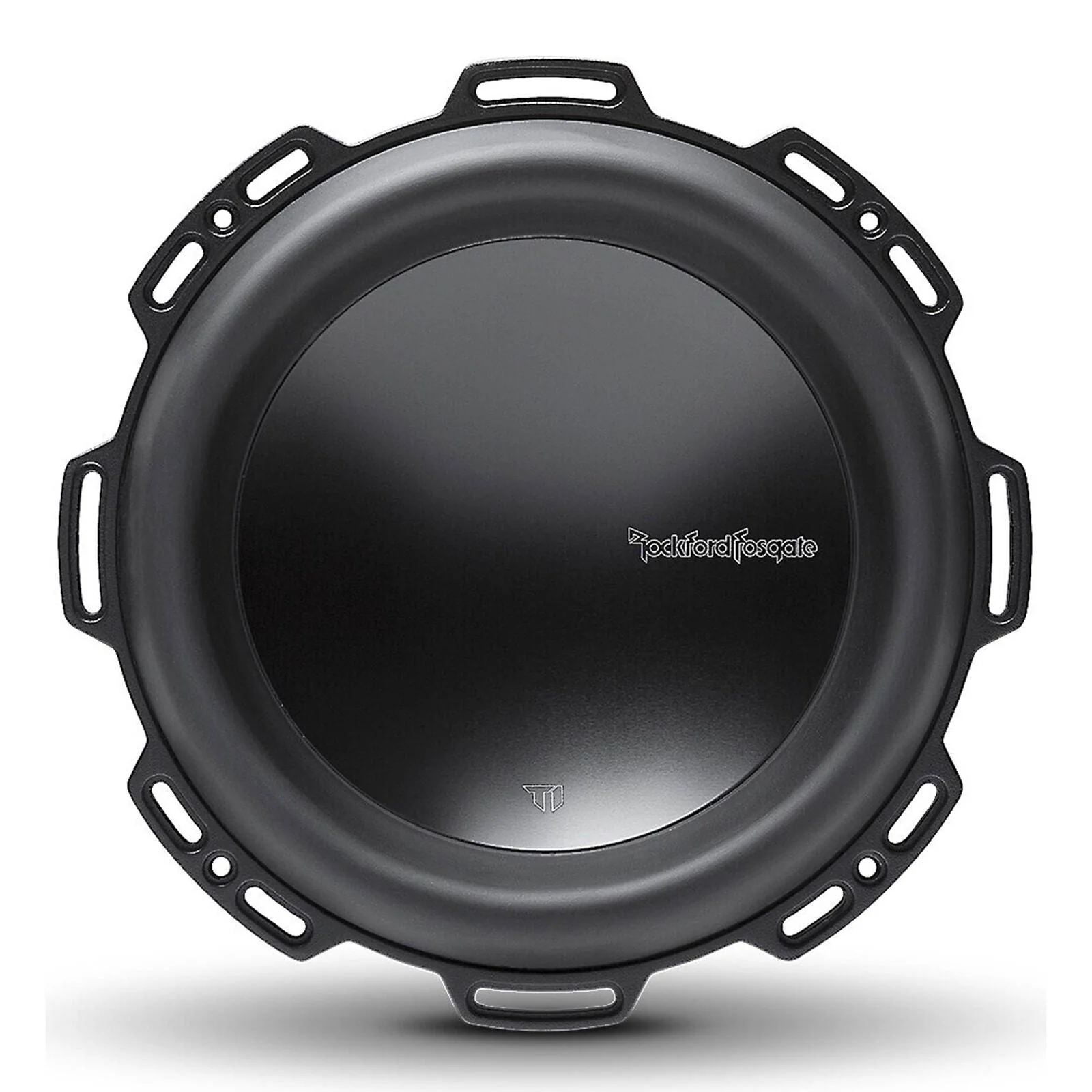

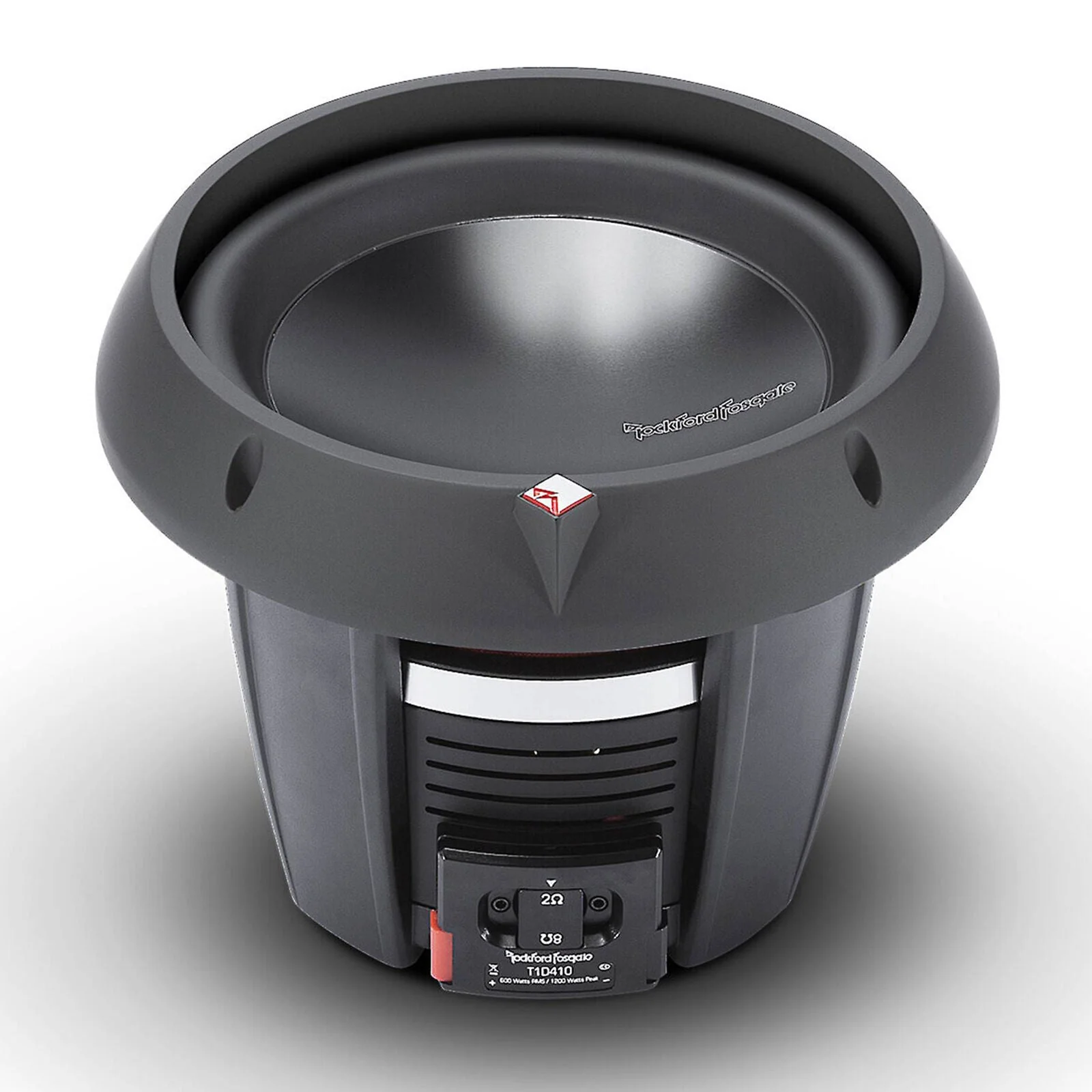

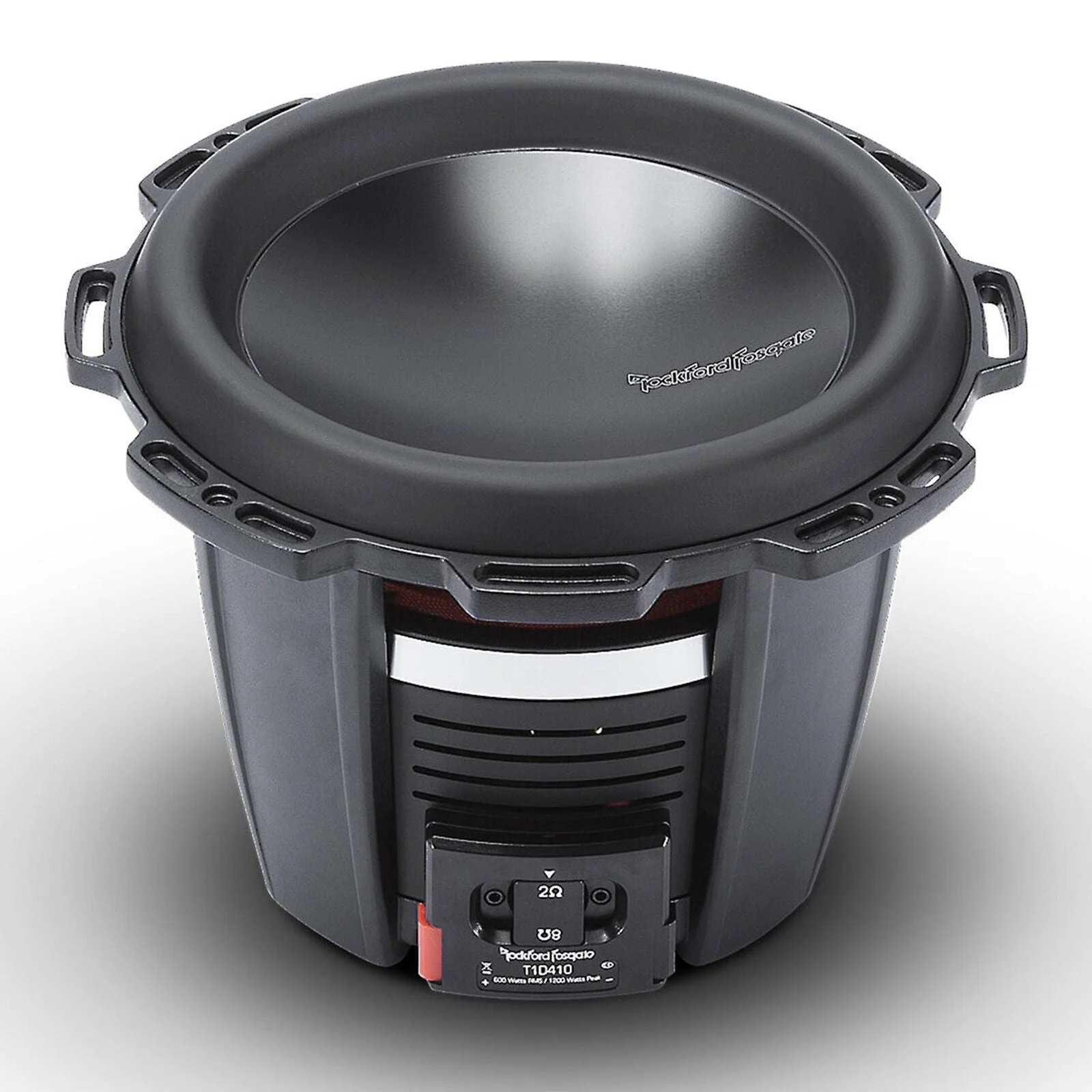

Rockford Fosgate Power T1 Series 10" 600W RMS 4 Ohm 3" DVC Subwoofer

Rockford Fosgate Power T1 Series 10" 600W RMS 4 Ohm 3" DVC Subwoofer

This Listing Includes:

• (1) Rockford Fosgate 10" Subwoofer
• (1) Grille
• (1) Fused 2-ohm/8-ohm SWIFT jumper (installed)
• (1) Non-fused 2-ohm/8-ohm SWIFT jumper (not installed)
• (12) 1-5/8" Allen head screws
• (1) 4mm Allen head bit
• (1) Installation/Operation Manual

Description:

This Rockford Power Series T1D410 Dual 4 Ohm subwoofer leverages advanced Rockford Fosgate technology for exceptional performance. It features patented VAST technology that increases the cone's surface area by up to 25%, delivering the output of a much larger woofer. Capable of handling up to 1200 watts, it produces deep, powerful bass. The cone is reinforced with Kevlar fibers, similar to those used in bulletproof vests, and protected by a hard anodized aluminum dust cap. The FlexFit basket design ensures flexibility for various installations, and the unique SWIFT terminals allow for easy impedance adjustment between 2 or 8 ohms. This subwoofer is designed to impress with its clean, high-tech look and robust performance, making it an excellent addition to any high-power audio system.

Download Owner's Manual

Features:

• Symmetrical dual progressive roll tear-resistant poly-cotton spiders
• Periodic-stitched fatigue-resistant tinsel lead wire
• Proprietary 8 AWG insulated all-metal input spring terminal connection
• High-temp voice coil with spun-laced Nomex reinforcement collar
• Optimized and matched magnetic and compliance geometry
• Anodized aluminum heat-sinking dust cap
• Kevlar fiber-reinforced paper cone
• Rigid die-cast aluminum basket
• Optimized pole piece and spider venting
• Anodized aluminum voice coil former / copper-clad aluminum wire

Specifications:

• Size: 10"
• Power Handling: 600 Watts RMS / 1200 Watts Max
• Magnet Weight: 100 oz.
• Speaker Connector: Compression Terminal
• Voice Coil Diameter: 3" (75.5 mm)
• Nominal Impedance: Dual 4 Ohm
• Woofer Displacement: 0.078 cu. ft. (2.2 Liters)
• Sealed Box Volume: 0.75 cu. ft. (21.2 Liters)
• Vented Box Volume: 1.5 cu. ft. (42.4 Liters)

Thiele & Small Parameters:

• SPL: 83 dB @ 1w/1m
• Vas: 15.7 Liters
• Re: 6.5 Ohms
• Le: 2.5 mH
• Fs: 36 Hz
• Qts: 0.65
• Qes: 0.73
• Qms: 5.70
• Xmax: 16 mm

Measurements:

• Cutout Diameter: 9.0625 in. (230 mm)
• Mounting Depth: 6.375 in. (161.9 mm)
• Shipping Weight: 25.7 lbs. (11.65 kg)
