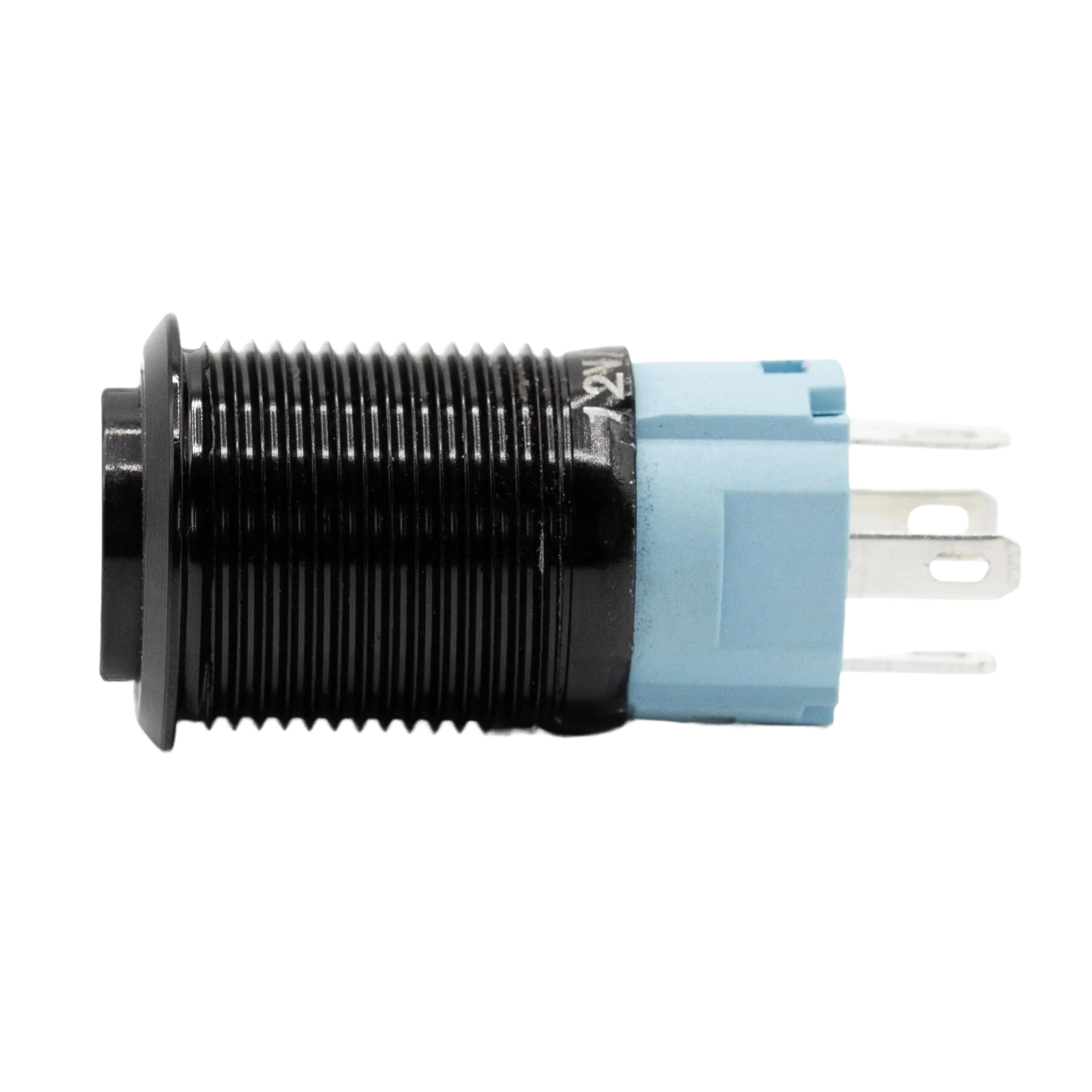

Sparked Innovations Universal Black Momentary Pushbutton Switch w/LED Light SPDT

• Universal aluminum 12V momentary push button black switch
• Activate horns, fuel doors, trunk pops, door solenoids, anything needing a momentary pulse
• Colors: Blue, Green, Red
• LED life = 40,000+ hrs.
• LED light can be wired to be illuminated at all times or only when the switch is held in the ON position.

Sparked Innovations Universal Black Momentary Pushbutton Switch w/LED Light SPDT

This Listing Includes:

(1) Universal Black Momentary Pushbutton Switch

Universal black aluminum momentary pushbutton switch to activate horns, fuel doors, trunk pops, door solenoids, anything needing a momentary pulse. Illuminates a ring around button head when activated. Can be wired so that the LED illuminates constant or only when the switch is in the on position. Universal aluminum 12V momentary push button black switch. These types of switches are momentary mechanical switches of the Single Pole Double Throw (SPDT) variety. To activate, press and hold for ON and release for OFF. The halo ring LED light can be wired to be illuminated at all times or only when the switch is held in the ON position. IP67 rated for dust and waterproof up to 1 meter. Can be used in automotive, marine, motorcycle, or industrial applications.

Specifications:

• Mounting diameter = 16mm


• Head diameter = 18mm


• Mounting depth = 35mm


• LED operating voltage = 12v DC, range = 9~16v


• Max switch rating = 3A/250v AC


• LED life = 40,000+ hrs.


• Symbol: Ring


• Colors: Red, Blue, or Green


• Switch Contact Type: 1NC, 1NO


• Waterproof Rating: IP67
