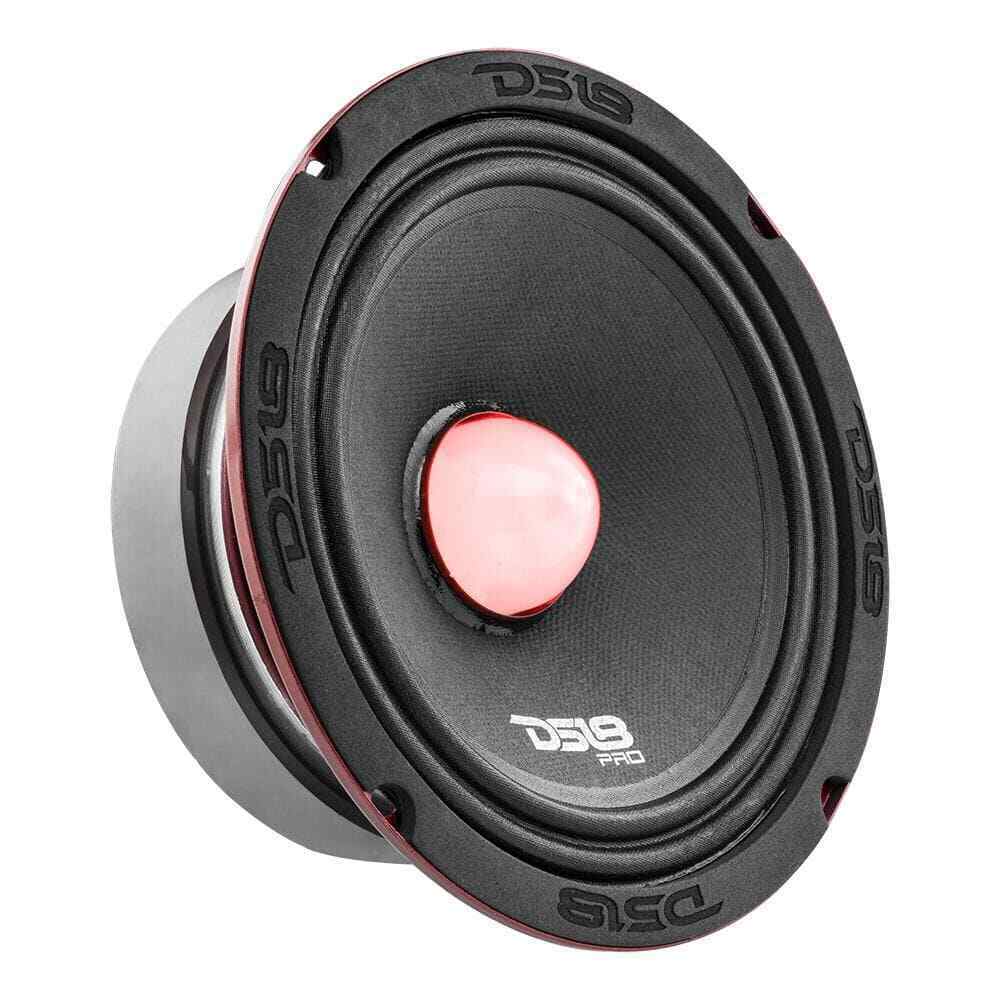

DS18 6.5" Midrange Speaker 500 Watt 4 Ohm w/ RGB LED Bullet PRO-X6.4BMRGB

DS18 6.5" Midrange Speaker 500 Watt 4 Ohm w/ RGB LED Bullet PRO-X6.4BMRGB

DS18 is always innovating and dominating the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X6.4BMRGB. This amazing speaker shares all the characteristics of our very popular X6.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 250w RMS and 500w peak power with a 94db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambiance aesthetic to match your mood or color scheme.

This Listing Includes:

(1) DS18 6.5" Midrange Speaker PRO-X6.4BMRGB

Features:

- High power pro audio speaker handling 250w RMS and 500w peak power.

- Integrated RGB resonator (bullet tweeter) 4 wire connections for a bright and brilliant aesthetic.

- Strong ferrite magnet with CCA high wattage voice coil and 94db sensitivity.

- You can use one color at a time or add the LED-BTC to have multiple colors!

Specifications:

Nominal Diameter: 6.5"

Nominal Impedance: 4 Ohm

RMS Power Handling: 250 Watts

MAX Power Handling: 500 Watts

Sensitivity (1w/1m): 94dB

Frequency Response: 125Hz-12KHz

Recommended HI Pass Crossover: 135 Hz

Voice Coil Diameter: 38.6mm / 1.5"

Voice Coil Former: Material Kapton

Winding Material: CCAW

Cone Material: Paper

Bullet Material: Translucid ABS with RGB LED

Surround Material: Cloth

Basket Material: Steel

Magnet Material: Ferrite

Magnet Weight: 30 Oz

Displacement Volume: .032L

Thiele and small parameters:

Equivalent Volume: Vas 2.349L

Excursion (one way): Xmax 8.2mm

Free Air Resonance: Fs 135Hz

Mechanical Factor: Qms 7.707

Electrical Factor: Qes 0.789

Total Factor: Qts 0.716

Mechanical Mass: Mms 10.718g

Mechanical Compliance: Cms 0.094 m/N

BL Factor: BL 6.689

Voice Coil Inductance: Le 4.22mH

Cone Area: Sd 132.73 mm2

CD Resistance: Re 3.2 ohms

Dimensions:

Overall Diameter: 6.61" / 168mm

Overall Depth: 2.83" / 72mm

Front Mount Baffle Cutout: 5.70" / 145mm

Mounting Depth: 2.64" / 67mm

Motor Diameter: 4.68" / 119mm
