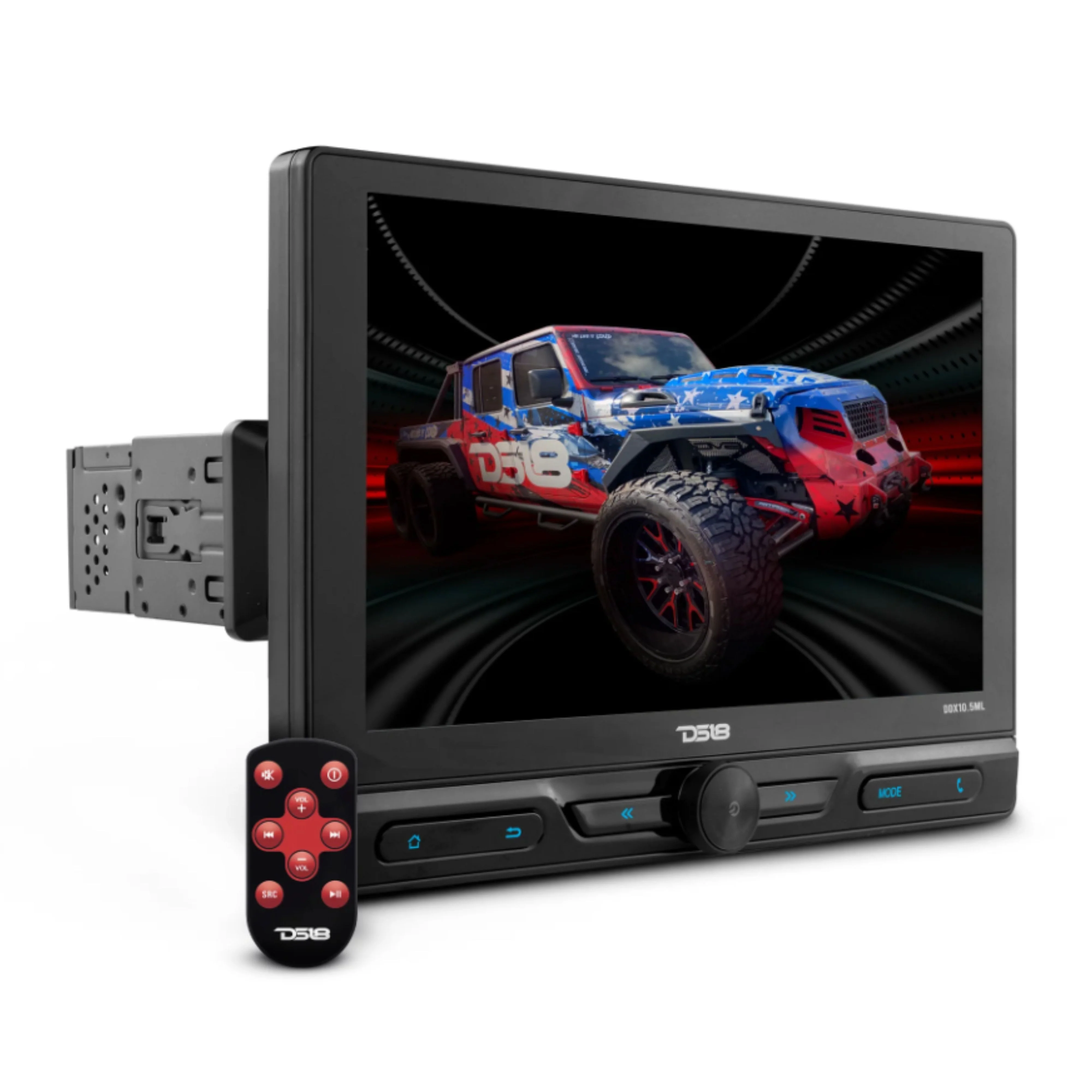

DS18 10.5" Bluetooth Radio Mirror-Link USB/SD/AUX w/ Remote & DSP DDX10.5ML

• 5 (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting. Full 14 Band EQ and Subwoofer LPF
• Built in , Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, and USB connections (1 front and 2 rear) HDMI Outputs for full size monitor use
• Wireless remote control for easy operation. RCA inputs so you can view external sources video easily via source.
• Multi Colored Backlit Keys for easy use in dim settings MIC in options for easy phone operation and built in controls.
• Camera Inputs included so you can plug and play most types of back up cameras. Apple and Android compatible.

DS18 10.5" Bluetooth Radio Mirror-Link USB/SD/AUX w/ Remote & DSP DDX10.5ML

This listing includes:

• (1) DS18 10.5" Bluetooth Radio Mirror-Link USB/SD/AUX w/ Remote & DSP DDX10.5ML

The DS18 DDX10.5ML Receiver redefines in-car entertainment with a massive 10.5-inch touch screen, seamless navigation, and modern features like Wi-Fi, Bluetooth, AUX, USB, SD, and phone controls. Its mechless design focuses on digital media playback, while the built-in 8-channel DSP delivers distortion-free, powerful audio tuning. With an integrated DVR for enhanced road safety and easy access to apps via mobile hotspot, this receiver is the ultimate upgrade for a dynamic and connected driving experience.

Features:

• 5 (Wide 16:9) Full HD (1280x720 pixels) Single-Din touchscreen to maximize your viewing and allow perfect fit modular mounting.


• Full 14 Band EQ and Subwoofer LPF


• Built in, Aux, SD Reader (64GB), 1.5a USB charging, AUX Input, AM/FM Tuner, -and USB connections (1 front and 2 rear)


• HDMI Outputs for full size monitor use


• Wireless remote control for easy operation.


• RCA inputs so you can view external sources video easily via source.


• Multicolored Backlit Keys for easy use in dim settings


• MIC in options for easy phone operation and built-in controls.


• Camera Inputs included so you can plug and play most types of back up cameras.


• Apple and Android compatible.

GENERAL:

• Rated power source: 14.4V DC (10.8V to 15V operation)


• Maximum Current Consumption: 10 Amp

DISPLAY:

• Screen Size / Aspect Ratio: 10,5 inch / Wide 16:9


• Pixels: 1280x720


• Display Type: TFT / Full HD / Capacitive Touch Screen


• Temperature Operation: -20C to +60C (14F to 140F)

AUDIO:

• Maximum Power Output: 40W x 4 Ch / 4 ohm


• Continuous Power Output: 15W x 4 Ch / 4 ohm


• Pre-output Level: 4.5 Volts (Front, Rear) 7 Volts (Subwoofer)


• Equalizer: 16 bands (35Hz, 60Hz, 80Hz, 120Hz, 160Hz, 250Hz, 320Hz, 400Hz,    600Hz, 800Hz, 1KHz, 3KHz, 5KHz, 8KHz, 12.5Khz, 16Khz)


• Gain: +/- 12dB


• Audio Control: Volume / Balance / Fader / Loudness

TUNER:

• Frequency Range: FM: 87.5 ~ 107.9 KHz AM:530 ~ 1710 KHz


• Presets Memory: 30 Stations (18 FM/12 AM)


• Region: Selectable (USA, Latin, Japan, Asia, Europe, OIRT, Australia, Mid-East)


• Sensitivity Adjustment: LOC (On/Off) / ST (On/Off)

USB / SD PLAYER:

• Type / Class V1.1 / V2.0 / MSC / MTP / FAT16 / FAT32 / NTFS


• Format Files Supported: RMVB, MPG4, AVI, MP3, WMA, JPEG, DivX


• Resolution Supported: 1080P Video


• Memory Size Reader: up to 64 Gb


• Max Current Supply: 1.5 Amp (USB)


• Number of USB Ports: 2 (1 x Front, 1 x Rear)

CONNECTIVITY:

• Bluetooth Version / Services: V5.1 / Audio Streaming / Hands Free calls


• Camera Input: RCA Analog Video up to HD 720p (Front/Rear)


• Video Output: Dual RCA (1 Volt/75 ohm)


• AV Aux Input: Rear RCA Audio and Video / Front 3.5mm Jack Stereo Audio


• Microphone:  3.5mm Jack external MIC Input


• Remote Control: Frontal IR Receptor / Wired (3.5mm jack) Input

Package Dimensions: (in inches)

• Length: 13


• Width: 11.25


• Height: 10


• Package Weight:(in pounds) 7 lbs.

Item Dimensions:

• Length: 5.5


• Width: 7


• Height: 4


• Item Weight: (in pounds) 5.5 lbs.
