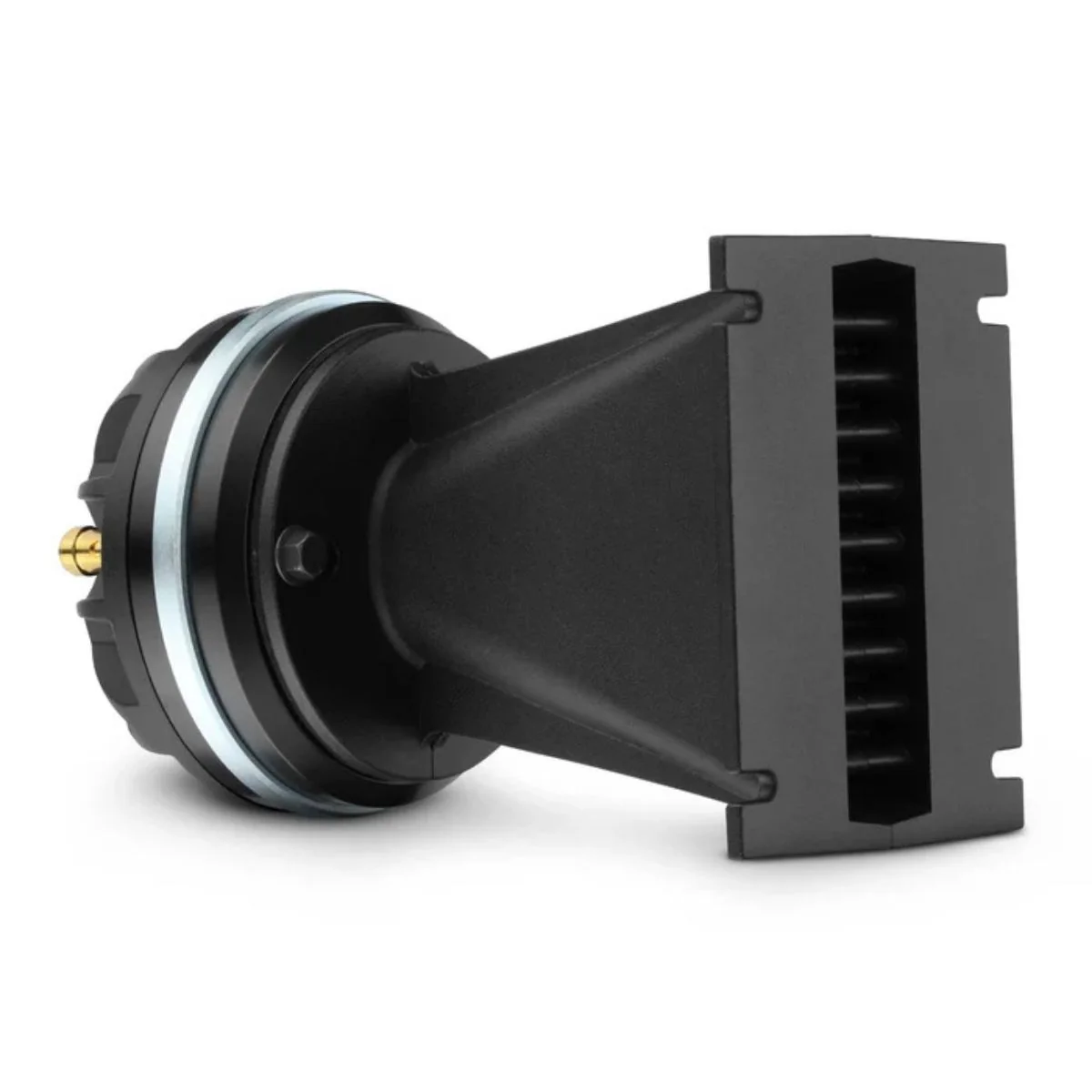

3.5"x4.4" 90W RMS 8 Ohm Neo Compression Driver Horn Kit DS18 PRO-DKN175WG

• NEODYMIUM HIGH EFFICIENCY DRIVER Lightweight neodymium motor with 105 dB sensitivity for extreme output.
• TITANIUM DIAPHRAGM PERFORMANCE 1.75 inch titanium voice coil delivers crisp highs and strong projection.
• WAVE GUIDE HORN INCLUDED Aluminum cast horn improves dispersion and efficiency in pro audio builds.
• LOUD AND CLEAR OUTPUT Designed for SPL systems, demo vehicles, and high performance installs.
• PREMIUM LIGHTWEIGHT DESIGN Neodymium construction reduces weight while maintaining powerful output.

3.5"x4.4" 90W RMS 8 Ohm Neo Compression Driver Horn Kit DS18 PRO-DKN175WG

This Listing Includes:

• (1) DS18 PRO-DKN175WG Compression Driver


• (1) DS18 Wave Guide Horn

The DS18 PRO-DKN175WG Compression Driver Horn Kit delivers powerful high-frequency output with exceptional efficiency and clarity. Built with a neodymium motor structure, this driver produces a strong magnetic force in a lighter, more compact design compared to traditional ferrite drivers.

With a 1.75" titanium voice coil and 105 dB sensitivity, the PRO-DKN175WG delivers aggressive, crystal-clear highs that easily cut through loud environments. The included 3.5" x 4.4" cast aluminum waveguide horn improves sound dispersion and projection, making it ideal for SPL systems, pro audio builds, custom door panels, and competition installations.

Designed for serious sound systems, this driver provides high output, excellent efficiency, and reliable performance in demanding audio setups.

Features:

• Extreme SPL Output - 90W AES, 180W Program, 360W Peak


• Cut-Through-the-Noise Clarity - Titanium diaphragm


• Wide-Throw Sound Control - 140 horizontal dispersion


• High-Efficiency - 105dB Sensitivity


• Perfect for Loud Setups

Specifications:

• Nominal Impedance: 8 Ohms


• AES Power Handling: 90 Watts


• Program Power Handling: 180 Watts


• Peak Power Handling: 360 Watts


• Sensitivity (with horn): 105 dB (1w/1m)


• Frequency Response: 1.5 kHz - 20 kHz


• Recommended High-Pass Crossover: 2kHz


• Sold As: Single

Motor:

• Voice Coil Diameter: 1.75" (44.4 mm)


• Voice Coil Former: KSV


• Winding Material: CCAW


• Diaphragm Material: Titanium


• Magnet Material: Neodymium


• VC Cover Material: ABS


• Magnet Weight: 11.6 oz


• Motor Diameter: 4" (102 mm)

Horn Specifications:

• Nominal Diameter: 3.5" x 4.4" (89 x 111 mm)


• Throat Diameter: 1" (25.4 mm)


• Sound Coverage: 140 H x 15 V


• Body Material: Aluminum Cast


• Color: Satin Black

Dimensions:

• Overall Diameter: 3.5" x 4.4" / 89 x 111mm


• Overall Depth: 6.5" / 165.4mm


• Mounting Depth: 6.3" / 160.4mm


• Mounting Hole Cut-out: 1" x 4" / 25.4 x 101.6mm
