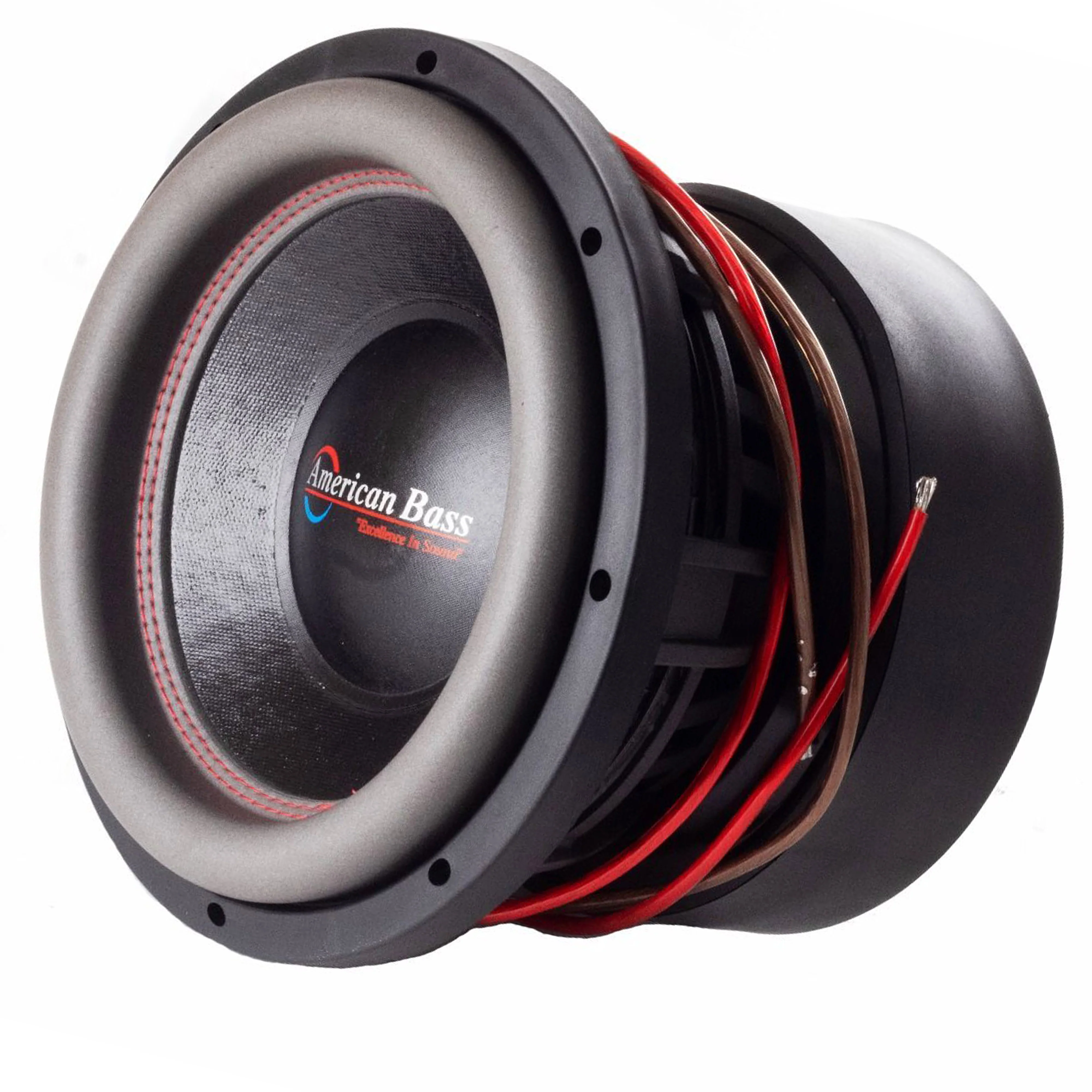

American Bass Car Audio 10 Subwoofer HD Series 4000 Watt Dual 1 Ohm HD-10-D1

• Immerse yourself in intense bass with the American Bass HD-10-D1 10" Subwoofer from the Ultra-Heavy-Duty HD Series.
• Boasting a massive 4000W MAX Power and 2000W RMS Power Handling, this subwoofer delivers serious low-end frequencies with reliability in mind.
• Features a black powder finish heavy-duty stamped basket with perimeter vents for enhanced voice coil cooling.
• High-temp 1 Ohm 4-layer voice coil with Nomex protection and Kevlar enforced non-pressed paper cone for durability and superior performance.
• Custom-made rubber gasket and magnet boot, along with double-stacked high-energy magnets, ensure a robust and reliable subwoofer for Die-Hard bass enthusiasts.

American Bass Car Audio 10 Subwoofer HD Series 4000 Watt Dual 1 Ohm Voice Coil HD-10-D1



This listing includes: (1) American Bass 10 Subwoofer HD-10-D1

The American Bass HD Series presents the HD-10-D1, a 10" Subwoofer designed for the ultimate bass experience. This subwoofer is part of the Ultra-Heavy-Duty line, ensuring gut-wrenching power and unwavering reliability. With a massive 4000W MAX Power and 2000W RMS Power Handling, the HD-10-D1 is a powerhouse that can rattle the most Die-Hard bass enthusiasts.

Highlighted by a black powder finish heavy-duty stamped basket with perimeter vents for superior voice coil cooling, this subwoofer is engineered for optimal performance. The high-temp 1 Ohm 4-layer voice coil with Nomex protection and Kevlar enforced non-pressed paper cone contribute to its durability and exceptional sound reproduction.

Featuring a mirror image double Conex spider system, double-stacked high-energy magnets, custom-made rubber gasket, and a custom-made rubber magnet boot, the HD-10-D1 is a subwoofer that stands out in both design and performance.

Specifications per Subwoofer:

• Nominal Diameter: 10"


• Nominal Impedance: 1 Ohm


• MAX Power Handling: 4000 Watts


• RMS Power Handling: 2000 Watts


• Sensitivity (1w/1m): 87.2dB

Motor Specifications:

• Voice Coil Diameter: 3"


• Cone Material: Kevlar enforced non-pressed paper.


• Surround Material: Foam


• Magnet Material: Ferrite


• Magnet Weight: 300 oz

Thiele & Small Parameters:

• Equivalent Volume: Vas - 9.2L


• Excursion: X-max - 17.5mm


• Free Air Resonance: Fs - 48.2Hz


• Mechanical Factor: Qms - 3.619


• Electrical Factor: Qes - 0.383


• Total Factor: Qts - 0.346


• Moving Mass: Mms - 156.5g


• Compliance: Cms - 59.3m/N


• Force Factor: BL - 16.1

Recommended Enclosures:

• Ported Box: 1.5 ~ 1.75ft


• Cutout Size: 9.25"

Dimensions per Subwoofer:

• Overall Diameter: 10.82" (275mm)


• Front Mount Baffle Cutout: 9.25" (235mm)


• Mounting Depth: 7.71" (196mm)


• Overall Depth: 8.85" (225mm)


• Motor Diameter: 8.89" (226mm)


• Unit Weight: 48 lbs.
